Instrumentation Manifolds
Vinpra Remotely Mounted
Vinpra Remotely Mounted 2 Valve Manifold.
• Working Pressure of 6000 psi.
• Temperature rating up to 1200 deg F with optional Grapfoil packing.
• Valves available in SS316/L and Exotic Alloys
Vinpra Directly Mounted
Vinpra Directly Mounted 2 Valve Manifold.
• Working Pressure of 6000 psi.
• Temperature rating up to 1200 deg F with optional Grapfoil packing.
• Valves available in SS316/L and Exotic Alloys
• Flange Seal Grooves meets the requirement of MSS SP 99.

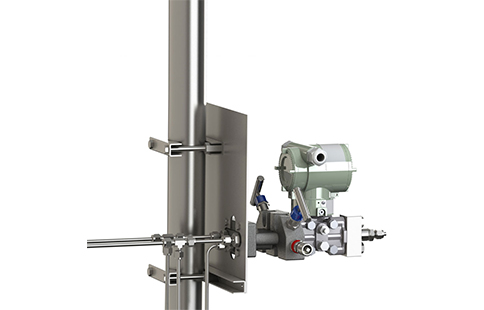

Modular Mounting Manifold System
Vinpra Modular Mounting Manifolds are specifically designed with butterfly mounting arrangement which is compatible with the Shell speciation for Process Instrumentation. A standard series of 2 Valve & 4 Valve manifolds for pressure measurement. The Instrumentation Manifolds provide Isolate & Drain function for local instrument or indicator mounting.? Hydrostatic Test certificate along with complete chemical & physical material certificates. The main distinction of MMV is that it eliminates the need for extra mounting accessories & reduces pipe work on site as these specially designed Manifolds can be easily assembled to a standard mounting plate
Manifold Accessories
Vinpra Seal Kit for mounting Manifold Directly with the Transmitter
• Vinpra Seal Kit consists of the following.
• PTFE Seal - Qty: 1 No.
• Mounting Bolt with Nuts - Qty:2 Nos.
• Mounting Bolts and Nuts comes with UNF threads.
