SERVO ACTUATOR

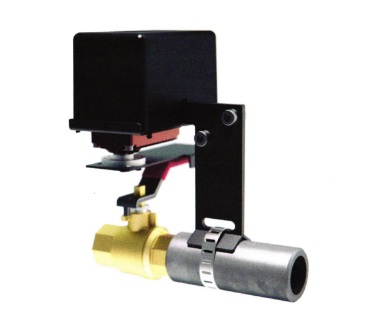

Vinpra Engineering is one of the leading Servo Actuator Manufacturers and Exporters in India . It is a Smart Gas/Water valve, enables accurate rotation of the arm to the exact angle desired, remote controlled via WiFi, can be installed on a variety of valve sizes, without any changes to the existing system.

WE HAVE TWO MODEL OF SERVO ACTUATORS

1) SERVO ACTUATOR MODEL NO.- VE-1100WP

2) SERVO ACTUATOR MODEL NO.- VE-1005SGT

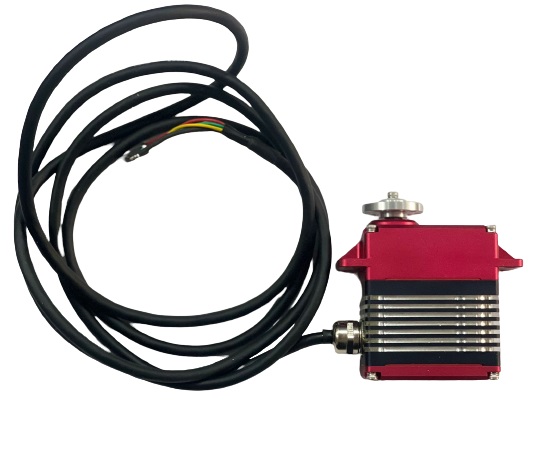

PRODUCT DESCRIPTION OF SERVO ACTUATOR (VE-1100WP)

Giant scale servos, watch out! Our VE-1100WP waterproof, heavy-duty digital giant brings out-of-this-world torque performance and strength to all your large scale vehicles, airplanes and robotic projects. Made with impressively durable steel gears, robust EMI-shielded cases and an IP-67* rated code for maximum underwater protection, this addition to our giant servo line has VINPRA unrivaled industrial digital circuitry and engineering.

Features
* Non-programmable, Industrial Digital Circuitry * EMI-shielded Cases *International Protection Code 67 Rating (6=Dust Tight; Complete Protection Against Contact 7) – * Immersion up to 1 meter * Durable Steel Gears * 14.8V 2-Cell LiPo Capability * 5-Pole Carbon Brushed Motor * VE-1100WP Servo Specifications * Performance Specifications * Operating Voltage Range (Volts DC) 11.1V ~ 14.8V * Speed (Second @ 60°) 0.26 ~ 0.19 * Maximum Torque Range oz. / in. 1167 ~ 1528 * Maximum Torque Range kg. / cm. 84 ~ 110 * Current Draw at Idle 130 mA * No Load Operating Current Draw 1,300 mA * Stall Current Draw 6,500 mA * Dead Band Width 2 µs * Physical Specifications * Dimensions (Inches) 2.52 x 1.30 x 2.87 * Dimensions (Metric) 64.0 x 33.0 x 73.0 * Weight (Ounces) 12.80 * Weight (Gram) 363.0 * Circuit Type Digital Amplifier with Mosfet Drive * Motor Type 5 Poles Cored Metal Brushless * Gear Material Steel * Bearing Type Quad Ball Bearing * Output Shaft (type / Ømm) Mega 15 * Case Material CNC Aluminum * Dust / Water Resistance IP 67 * Connector Gauge (AWG) / Strand Count 20 / 80

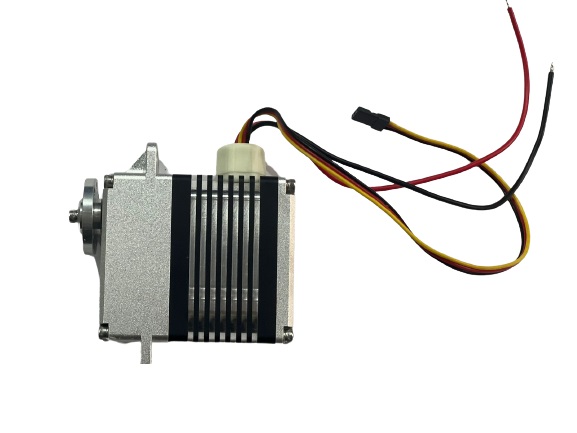

PRODUCT DESCRIPTION OF SERVO ACTUATOR (VE-1005SGT)

VINPRA VE-1005 SGT HV INDUSTRIAL SERVO -110KG" Servo with enormous power for industrial applications and also for XXL large models. Equipped with a brush motor, which is wound by hand, for highest reliability and durability. The aluminium housing acts against electromagnetic interference, an indestructible steel gear and digital servo electronics (not programmable) are further special features of these servos. The VINPRA VE-1005SGT servo delivers maximum and constant performance and with this data is also a favourite for industrial applications. Its long service life and uniquely designed gearbox make it one of the most reliable and efficient
Features: - High positioning speed - High actuating force - High holding force - long life potentiometer - steel gearbox - ball bearings - aluminium housing
Technical Data:
- Width: 33 mm - Height: 73 mm - Length: 64 mm - Weight: 0.31 Kg - Servo Type: Mega - Special features: Wide Voltage Digital - Motor type servos: brushed - Gearbox: Steel - Operating voltage in V: 4.8-8.4 V - Transit time s/60° at 6.0 Volt: 0.26 - Transit time s/60° at 7.4 Volt: 0.19 - Torque in kgcm at 6.0 Volt: 84 - Torque in kgcm at 7.4 Volt: 110 - Toothing: Mega - Ball bearing: Yes - Waterproof: No - Brief description Servo: for 3-4S Lipo
